S24/25 Series Fixed Single And Double-arm Resin Sand Mixer

S24/25 Series Fixed Single And Double-arm Resin Sand Mixer

Description

This series of double-arm resin sand mixer is mainly used for the mixing of resin self-hardening sand and sodium silicate sand.

Share:

Product Details

Inquiry

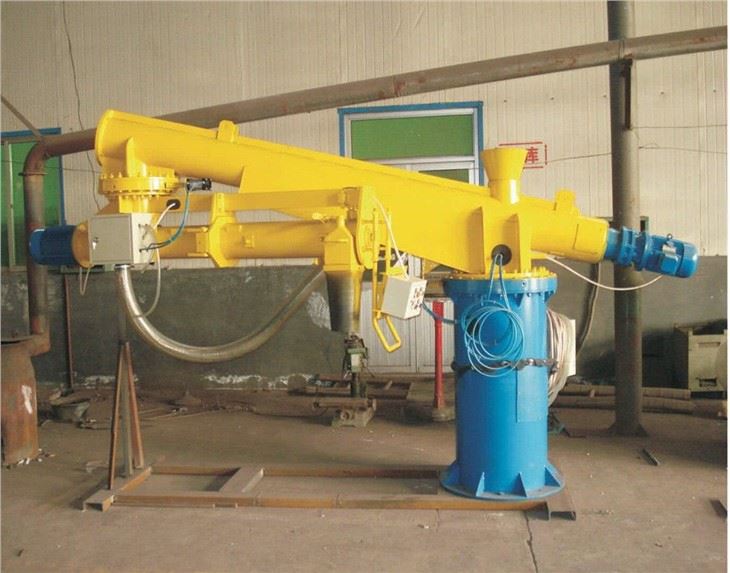

S24/25 series fixed single and double-arm resin sand mixer

This series of double-arm resin sand mixer is mainly used for the mixing of resin self-hardening sand and sodium silicate sand.

S24/25 series fixed single and double-arm resin sand mixer use:

The binder supply system adopts advanced gear pumps and diaphragm pumps (imported from Italy) with accurate quantitative.

The sand mixing time is short and there is no head and tail sand loss. The double arms can rotate flexibly and the working area is large.

The fully open sand mixing cage arm is convenient for blade cleaning or adjustment, and is convenient for operation and maintenance.

Reduce the amount of binder added, improve the quality of molding sand, and achieve good economic benefits.

Electricity adopts PLC control, full restriction and protection, analog display, stable and reliable work, and automatic production.

If you have purchase requirements for single and double-arm resin sand mixers, please contact with Qingdao Wozhou Machinery Manufacturing Co., Ltd.

Use characteristics


parameter/model

S255

S2510

S2520

S2530

S2550

S2580

productivity(T/h)

5-8

10-12

18-25

25-30



Level 1 sand mixing cage Radius of gyration (m)

                     Rotation range

                     Motor power (kw)

2.5

120°

2.2

2.5

120°

4

3.0

120°

5.5

3.0

120°

7.5

3.0



11

3.0



22

Level 2 sand mixing cage Radius of gyration (m)

                     Rotation range

                     Motor power (kw)

1.8

270°

4

1.8

270°

7.5

2

270°

15

2

270°

18.5

2.0



22

2.0



37

Maximum turning radius of sand outlet(mm)

4.5

4.5

5.5

5.5



Resin pump model

CB-B1.8

CB-B2.5

CB-B6

CB-B10

CB-B20

CB-B40

Curing pump model  Diaphragm pump

DMB—2.5

Binder quantitative accuracy
