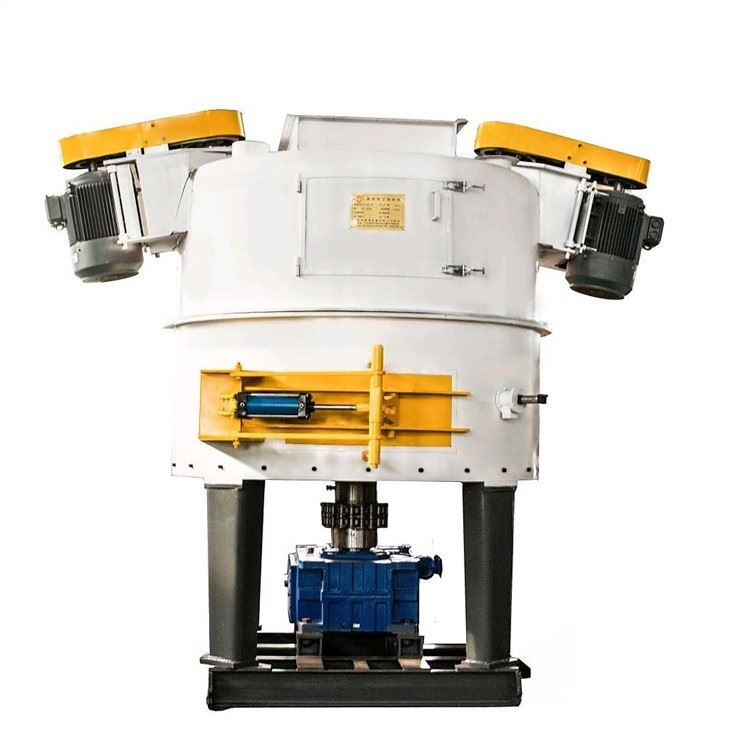

Gs Series High-efficiency Sand Mixer

Gs series high-efficiency sand mixer

Gs series high-efficiency sand mixer Use characteristics

Gs series high-efficiency sand mixer use:

GS series high efficiency sand mixer is mainly used for mixing various molding sands in large and medium-sized casting workshops, and can also be used to make various powdery and granular materials in glass, ceramics, refractory materials and other industries.

Features:

The vibration plate of Gs series high-efficiency sand mixer uses high-strength wear-resistant ceramics to ensure that the bottom plate does not stick to sand. The scraper is corroded and then welded with hard alloy blocks, which has a long service life and is easy to replace. The inner lining of the enclosure is also made of high-strength wear-resistant ceramics, the wear surface of the rotor blades is welded with wear-resistant material tungsten carbide, and the scraper device adopts an "S"-shaped scraper, which can fully mix the sand and shorten the discharge time. Thereby improving production efficiency. After mixing, the molding sand performance meets moisture content of 2.8-3.8%, compaction rate of 38±2%, @ compressive strength 0.12-0.2Mpa, temperature ≤ room temperature + 10°c, air permeability> 140. The red part is especially reflected come out.
