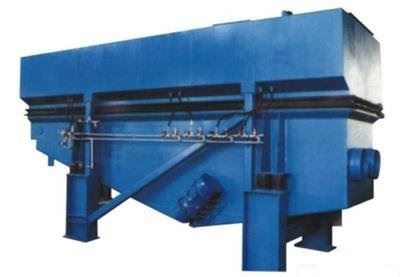

S86 Series Vibration Boiling Cooler

S86 Series Vibration Boiling Cooler

Description

The vibrating boiling cooling bed of the S86 series vibrating boiling cooler consists of a bed of porous fish scales, a blast system, an exhaust system and a humidifying stirrer.

Share:

Product Details

Inquiry

Product use of S86 series vibration boiling cooler

The vibrating boiling cooling bed of the S86 series vibrating boiling cooler consists of a bed of porous fish scales, a blast system, an exhaust system and a humidifying stirrer.

The hot old sand falls into the orifice plate of the vibrating boiling cooling bed, and while advancing in the direction of vibration, it sprays water through the humidifier, and the blast system blows in cold air from the lower part of the scale plate, which is the state of boiling of hot sand, air and heat The sand is in full contact, and the water vapor in the hot sand is taken away and discharged by the exhaust system. The hot sand part achieves the purpose of cooling. The cooled old sand is continuously transported to the sand outlet and transported away. The boiling sand and air Heat exchange is 6-10 times larger than in static state, so fluidized bed is an ideal heat exchange device.

Welcome to Qingdao Wozhou Machinery Manufacturing Co., Ltd. to purchase S86 series vibrating boiling cooler.

The main technical parameters

     Parameters

name

S8620

S8630

S8640

S8660

S8680

S86100

processing capacity(t/h)

20-30

30-40

50-70

80-100

100-120

120-140

vibration motor power(Kw)

2x2.2

2x3.0

2x3.7

2x5.5

2x7.5

2x9.5

blower power(t/h)

5.5

7.5

15

22

30

37

blower volume(m³/h)

6000

8000

14000

20000

28000

40000
