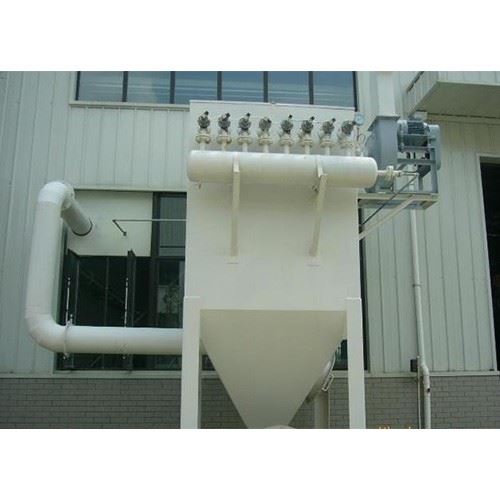

Pulse Dust Collector

The pulse dust collector is when the dust-containing gas enters the dust collector from the air inlet, it first hits the inclined plate and baffle in the middle of the air inlet and outlet, the airflow turns to flow into the ash hopper, and the airflow speed slows down. Due to inertia, coarse particles in the gas are caused The dust flows directly into the ash hopper. The pulse dust collector plays the role of pre-collecting dust. The airflow entering the ash hopper is then folded and passed upwards through the filter bag with a metal skeleton inside. The dust is trapped on the outer surface of the filter bag, and the purified gas enters the upper clean room of the filter bag chamber. Collected to the air outlet and discharged. During the process of purifying the dust-containing gas through the filter bag, more and more dust accumulates on the filter bag with the increase of time, which increases the resistance of the filter bag, resulting in a gradual decrease in the air volume, which is normal work. , To control the resistance within a certain range (140-170 mm water column), once it exceeds the range, the filter bag must be cleaned. When cleaning the dust, the pulse controller will trigger each control valve to open the pulse valve in sequence, and the compressed air in the air bag will be Each hole of the blowing tube is sprayed into the corresponding filter bag through the venturi tube, the filter bag instantly expands rapidly, so that the dust accumulated on the surface of the filter bag falls off, and the filter bag returns to its original state.

Welcome to Qingdao Wozhou Machinery Manufacturing Co., Ltd. to purchase the high-quality pulse dust collector.
