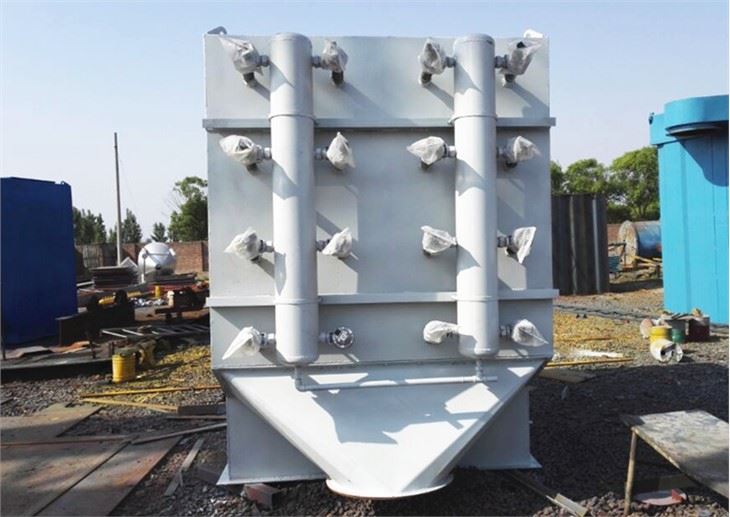

Dry Filter Cartridge Dust Collector

The dry filter cartridge dust collector is when the dusty gas enters the dust collector from the air inlet, it first encounters the inclined plate and baffle in the middle of the air inlet and outlet, and the airflow turns to flow into the ash hopper. At the same time, the airflow speed slows down. The medium and coarse particle dust flows directly into the ash hopper. The dry filter cartridge dust collector plays the role of pre-collecting dust. The airflow entering the ash hopper is then folded and passed upwards through the filter bag with a metal skeleton inside. The dust is trapped on the outer surface of the filter bag, and the purified gas enters the upper part of the filter bag chamber. The clean room is collected to the air outlet and discharged. In the process of purifying the dust-containing gas through the filter bag, more and more dust accumulates on the filter bag with the increase of time, which increases the resistance of the filter bag and causes the processing air volume to gradually decrease. In order to work normally, the resistance must be controlled within a certain range (140-170 mm water column). Once the range is exceeded, the filter bag must be cleaned. When cleaning the dust, the pulse controller will trigger each control valve to open the pulse valve in sequence. Compressed air is sprayed into the corresponding filter bags from the holes of the blowing tube through the venturi tube. The filter bag instantly expands rapidly, causing the dust accumulated on the surface of the filter bag to fall off, and the filter bag returns to its original state.

Qingdao Wozhou Machinery Manufacturing Co., Ltd. produces high-quality dry filter cartridge dust collectors. Welcome to negotiate.
