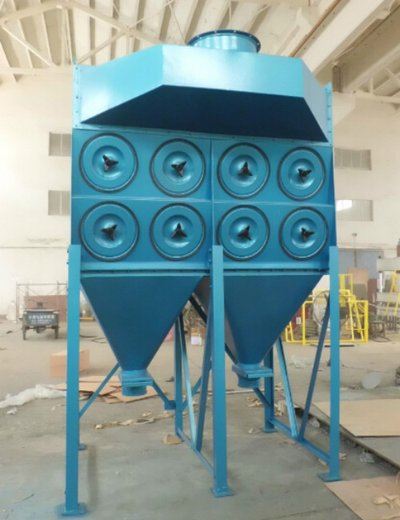

Cartridge Dust Collector

The cartridge dust collector is when the dust-containing gas enters the dust collector from the air inlet, it first encounters the inclined plate and baffle in the middle of the air inlet and outlet, and the airflow turns to flow into the ash hopper. At the same time, the airflow speed slows down. Due to inertia, the gas is thicker. The particulate dust flows directly into the ash hopper. The cartridge dust collector plays the role of pre-collecting dust. The airflow entering the ash hopper is then folded and upwards through the filter bag with a metal skeleton inside. The dust is trapped on the outer surface of the filter bag, and the purified gas enters the upper cleaning room of the filter bag chamber. , It is collected to the air outlet and discharged. In the process of purifying the dust-containing gas through the filter bag, as time increases, more and more dust accumulates on the filter bag, which increases the resistance of the filter bag and causes the processing air volume to gradually decrease, which is normal When working, the resistance must be controlled within a certain range (140-170 mm water column). Once the range is exceeded, the filter bag must be cleaned. When cleaning the dust, the pulse controller will trigger each control valve to open the pulse valve and the compressed air in the air bag. Each hole of the blowing tube is sprayed into the corresponding filter bag through the venturi tube. The filter bag instantly expands rapidly, causing the dust accumulated on the surface of the filter bag to fall off, and the filter bag returns to its original state.

Qingdao Wozhou Machinery Manufacturing Co., Ltd. specializes in the production of cartridge dust collector. Welcome to visit the factory.
