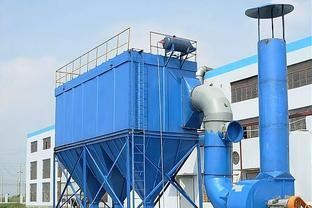

Stainless Steel Bag Filter

The working principle of stainless steel bag filter:

The dust-containing gas enters the ash hopper through the air inlet or the filter bag chamber through the open flange. The dust-containing gas is filtered by the filter bag of the dust collector and enters the clean gas chamber, and then passes through the exhaust port of the clean gas chamber by the fan Row away. Dust accumulates on the outer surface of the filter bag and increases continuously, which makes the resistance of the bag filter continue to rise. In order to make the equipment resistance not exceed 1200Pa, the bag filter can continue to work, and the dust on the filter bag needs to be cleaned regularly. The PLC program controller starts the pulse valve in a timing sequence, so that the compressed air (0.5-0.7Mpa) in the air bag is ejected from the blowing pipe (called primary air) through the venturi tube to induce several times the surrounding air of the primary air (called secondary Wind) enters the filter bag to make the filter bag expand rapidly in an instant, and shake off the dust along with the reverse force of the airflow to achieve the purpose of dust removal.

The stainless steel bag filter is a bag filter designed after absorbing the technology of similar products and improved. The stainless steel bag filter adopts the technology of high-pressure (0.5-0.7Mpa) large-flow pulse valve injecting dust removal from filter bag one by one. Compared with other domestic single machines, it has the characteristics of large dust removal energy and high efficiency. It is also small in size, light in weight, simple and compact in structure, easy to install, and convenient to maintain (external filter type). It is widely used in building materials, metallurgy, mining, chemical, coal, non-metal mine powder processing and other dusty gas purification treatment systems. It is an ideal equipment for environmental protection and dust removal.
